A Google Drive conditional rule matches files by their Google Drive labels. For example, you can remove files labeled Confidential from search results for the Finance group, or block agents from changing them. Setup has three steps:
  1. Prepare your Google Drive labels in the Google Admin console.
  2. Connect the Google Drive MCP server in Barndoor so it can read those labels.
  3. Create the conditional rule in Field Controls.
This guide applies to the Barndoor-hosted Google Drive MCP server available in the MCP server directory. It does not apply to Google’s official remote Drive MCP server.

​
Prerequisites

You need:
  • Admin access to your Barndoor organization
  • A Google Workspace edition that supports Drive labels
  • At least one published, Drive-enabled label in your Google Workspace
  • A Google Workspace user who can view the labels you want Barndoor to discover

​
1. Prepare your Google Drive labels

Barndoor discovers existing labels; it does not create or publish the label taxonomy. Set up the labels in Google first.
  1. Open Label manager in the Google Admin console, or navigate to Security → Access and data control → Label manager. You need the Manage Classification Labels privilege.
  2. On Classification labels, create the labels your organization needs.
  3. Enable the labels for Drive and publish them. Published Drive-enabled labels show Drive under Applications and Published under Status.
Only published, Drive-enabled labels visible to the connected identity appear in Barndoor.
If you lack that privilege, Google may send you to /permissiondenied or a redirect-loop error. That is an authorization failure, not a broken link.
Before continuing, confirm that at least one label is published and enabled for Drive in Label manager.

​
2. Connect the Google Drive MCP server

In this guide, service account means the organization-level OAuth connection on the Barndoor server detail page. It does not mean a Google Cloud IAM service account. Connect a Google Workspace user that can view the labels you need.
Barndoor’s stored public OAuth credentials for Google Drive include the restricted drive.labels.readonly scope, so most organizations can use them as-is for label discovery.
  1. Navigate to Admin → MCP Servers.
  2. Add Google Drive from the Barndoor-hosted MCP server directory, or open an existing Google Drive server.
  3. Leave Use stored public OAuth credentials enabled unless you already use a private client.
  4. Confirm Scopes includes:
    New servers inherit this from the catalog. An existing server may still have an older snapshotted list. If Labels is missing, add it or click Reset to default scopes.
  5. Save the server configuration.
  6. On the server detail page, connect the service account that conditional rules will use for live label discovery.
If the server was already connected, reconnect it after changing scopes. Existing OAuth grants do not automatically receive newly added scopes. On the Google consent screen, confirm that access to Drive labels is included. drive.labels.readonly is the least-privilege scope for label discovery (list_labels / list_file_labels). It does not let Barndoor apply labels or edit files. For that, see Enable write tools on existing files.
The service account connection should show as connected, and the completed Google consent flow should include access to Drive labels.

​
Use a private OAuth client

A private client is optional for label discovery. Keep it if you already configured one. You need one to enable write tools on existing files, and you may also want one if you need scopes beyond the catalog defaults or want label traffic to run through your own Google Cloud project.
  1. In a Google Cloud project, enable the Drive Labels API and the Google Drive API.
  2. Create a Web application OAuth client and add the production redirect URI from Redirect URI Allowlisting:
    If you are connecting from a Barndoor trial hostname, allowlist that hostname’s /callback URI as well.
  3. On Google Auth Platform → Data Access, add every scope Barndoor will request, including the default Google Drive scopes, drive.labels.readonly, and drive if you need write tools on existing files. Adding a scope on Data Access only makes it available to request. Barndoor must also list it on the server instance, then the user must reconnect. drive is a restricted scope. If your OAuth app’s Audience is Internal, users in your Workspace can grant it without Google verification. An External app needs Google’s restricted-scope verification first.
  4. On the Google Drive server in Barndoor, turn off Use stored public OAuth credentials, paste the Client ID and Client Secret, confirm Scopes includes drive.labels.readonly (and drive for write tools on existing files), and save.
  5. Connect or reconnect the service account.
The Drive Labels API provides the label taxonomy. The Google Drive API provides file search and file-label access. Enabling the separate Drive MCP API does not enable these tools.
Tenants already on private OAuth can keep it. Switching back to stored public credentials is optional and is not required for label discovery.

​
Enable write tools on existing files

The catalog’s default write scope is drive.file, which only covers files the Barndoor OAuth app created or that the user opened with it. Write tools called on any other file, which includes most of your existing Docs, Sheets, and folders, fail with appNotAuthorizedToFile. This applies to update_file_labels as well as update_file, rename_file, move_file, and create_permissions. To let these tools act on existing files, an admin must:
  1. Add the full Drive scope to the Google Drive server’s Scopes:
  2. Switch the server to your own OAuth client. Barndoor’s stored public OAuth credentials do not include the drive scope, so turn off Use stored public OAuth credentials and follow Use a private OAuth client.
  3. Reconnect the service account and any users who already connected, and approve the new Drive access on the Google consent screen.
drive grants read and write access to every file the connected user can access. Use Field Controls and MCP Policies to limit which tools agents can call and what they can see.
update_file_labels also needs the connected user to have permission to apply that label, as configured in Label manager. Without the drive scope, an agent can still work on a copy: copy_file creates a file the connector owns, and write tools can change that copy. People working on the original file won’t see those changes.

​
3. Create the conditional rule

With labels published and the service account connected, you can build the rule.
  1. Navigate to Data Control Center → Field Controls.
  2. Click Add Conditional Rule.
  3. Enter a Name and select your Google Drive server under Server.
  4. Optionally, add groups or roles under Target Group / Role. Leave it empty to apply the rule to all users.
  5. Under When, select Labels, then choose one or more labels or label options. See Choose labels and label options.
  6. Under Applies to, choose All tools, Read (tool results), or Write (create, update, and delete calls).
  7. Under Then, choose Filter to remove matching files from results, or Block to deny matching calls or results. Filter isn’t available for Write: writes are always blocked outright.
  8. Click Add Rule.

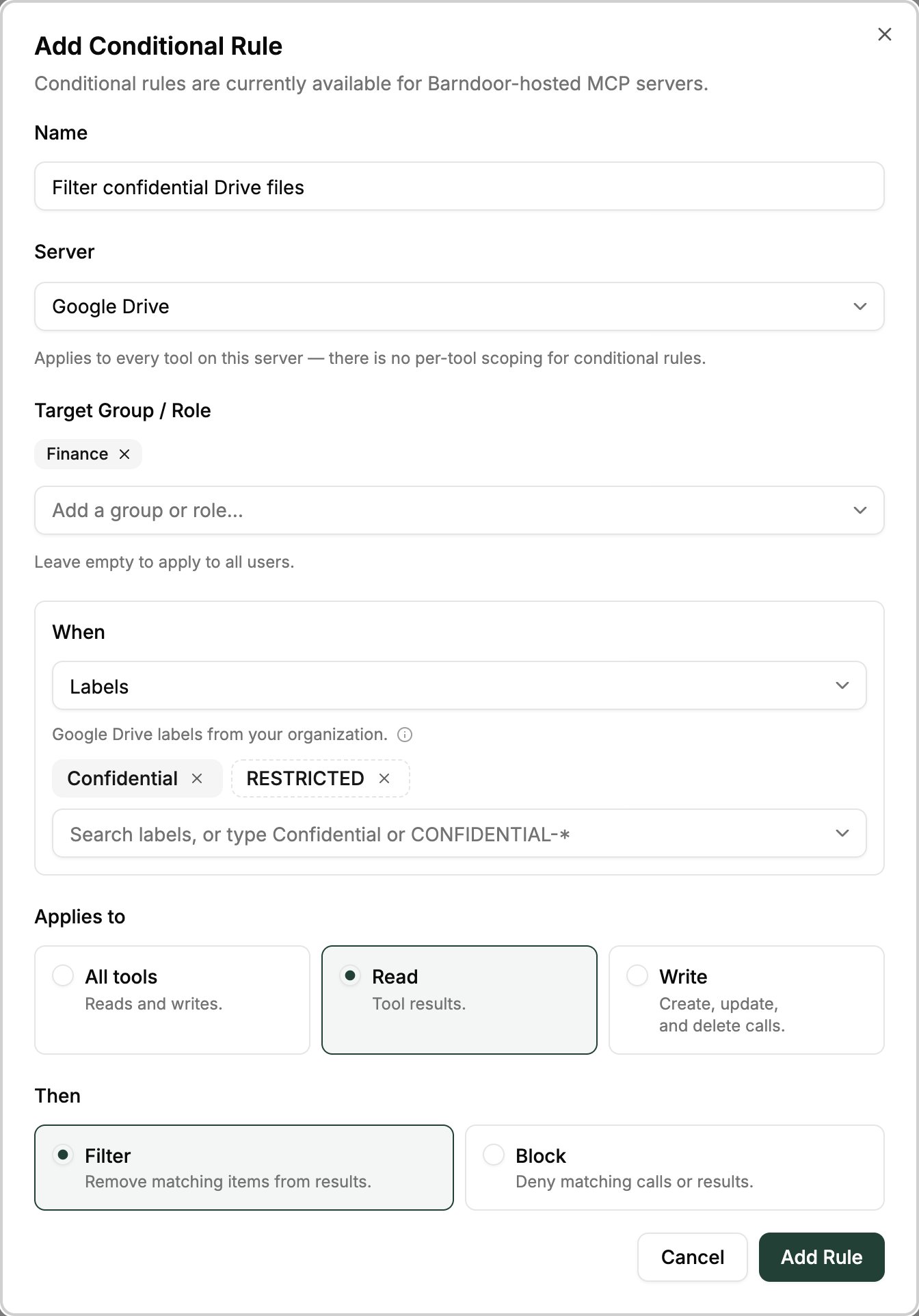

Add Conditional Rule dialog for Google Drive with the Confidential and RESTRICTED labels selected, applying to Read with the Filter action The live list is loaded with the service account connection on the selected Google Drive server. If the service account isn’t connected, the When section prompts you to connect it. Click Connect service account, complete the OAuth flow, and retry the search. When section prompting you to connect the service account to load Drive labels
Your organization’s published labels should appear in the live results when you search under Labels.

​
Choose labels and label options

The Labels list includes every published label the service account can see, plus each option of a label’s selection fields, listed by its display name. For example, a Sensitivity label with Confidential and Internal options appears as three entries. Pick from the list where you can. Listed labels and options are matched by ID, so the rule keeps working if someone renames the label. Typed titles and patterns are matched by title, so renaming a label can break them. Use them for labels the service account can’t see. If you type the title of a label that is listed, Barndoor uses the listed label instead. Typed titles follow these rules:
  • Case is ignored, but spaces, -, and _ must match exactly: Confidential-* does not match Confidential Internal.
  • Titles can use letters, numbers, spaces, -, and _, with * as a wildcard. For a title with other characters, pick the label from the list.
  • * on its own isn’t allowed, because it would match every labeled file. Pick the labels to cover, or add text around the *.

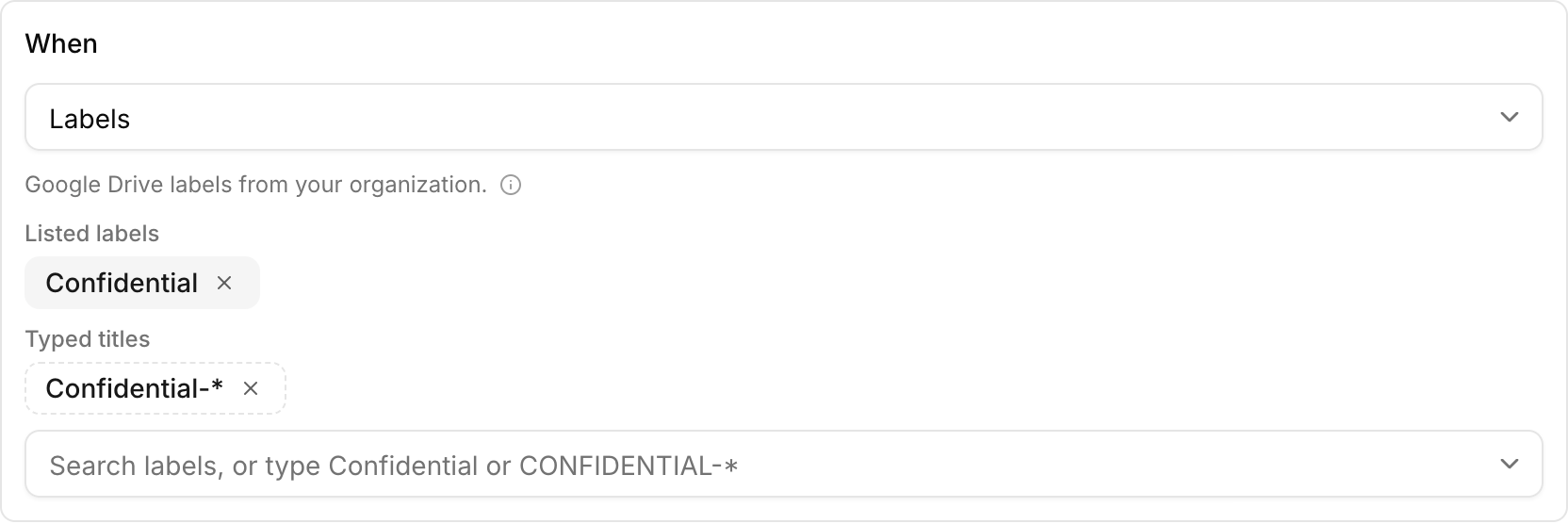

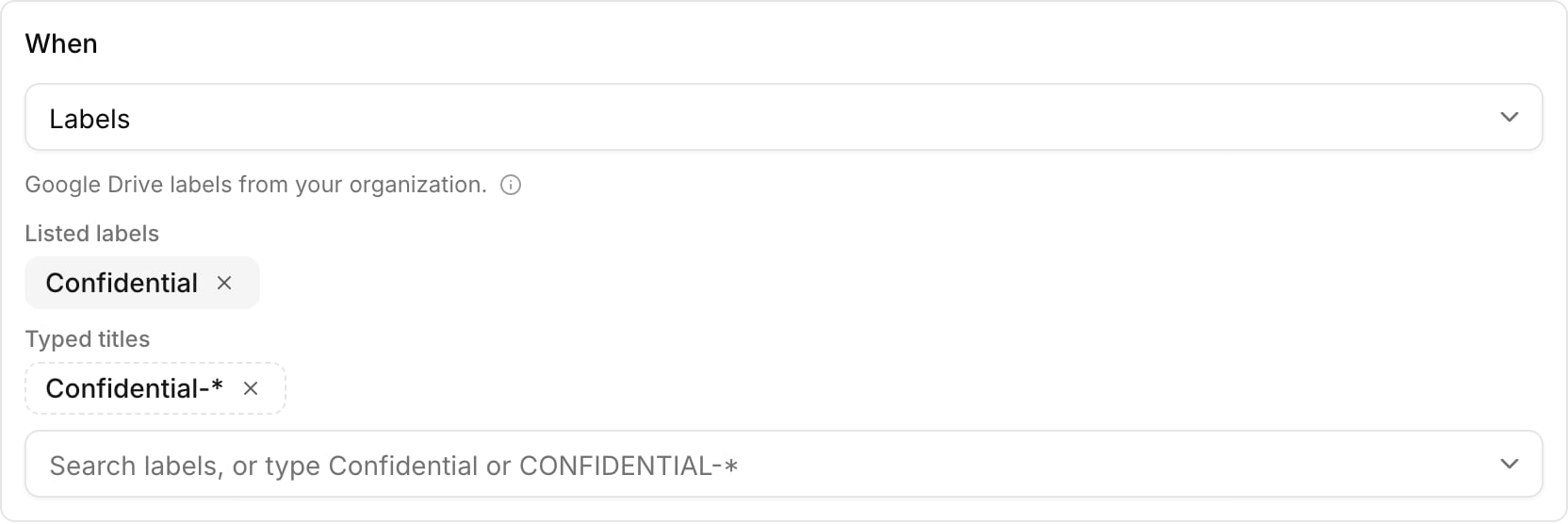

When section with the listed label Confidential and the typed title Confidential-* selected

​
What a rule matches

  • Read checks the files that Google Drive tools return, such as search, list, get, and export results. Filter removes matching files and returns the rest. Block denies the whole result if any file matches. Files without a matching label pass through.
  • Write checks the file a write tool acts on, for example update_file, rename_file, move_file, trash_file, create_permissions, or update_file_labels. Barndoor looks up the target file’s labels before the call runs and blocks the call if they match.
  • All tools applies both checks.

​
Verify the setup

You can verify label discovery in either place:
  • In Field Controls, the Labels condition of a conditional rule shows your published label titles in the live results.
  • Through the Google Drive MCP server, the list_labels tool returns the published label taxonomy.
To verify a label on a specific file, apply the label in Google Drive and call list_file_labels with that file’s ID.

​
Troubleshooting

On stored public OAuth, the Drive Labels API must be enabled on Barndoor’s managed Google Cloud project. Contact Support if the error persists after you reconnect.On a private OAuth client, enable the Drive Labels API on the Google Cloud project that owns that client. Wait a few minutes, then retry.
On stored public OAuth, contact Support. On a private client, enable the Google Drive API on the same project, wait a few minutes, and retry.
You are not authorized for Label manager. Ask a Google Workspace super admin to grant Manage Classification Labels, then retry. The URL is correct even when Google redirects to /permissiondenied.

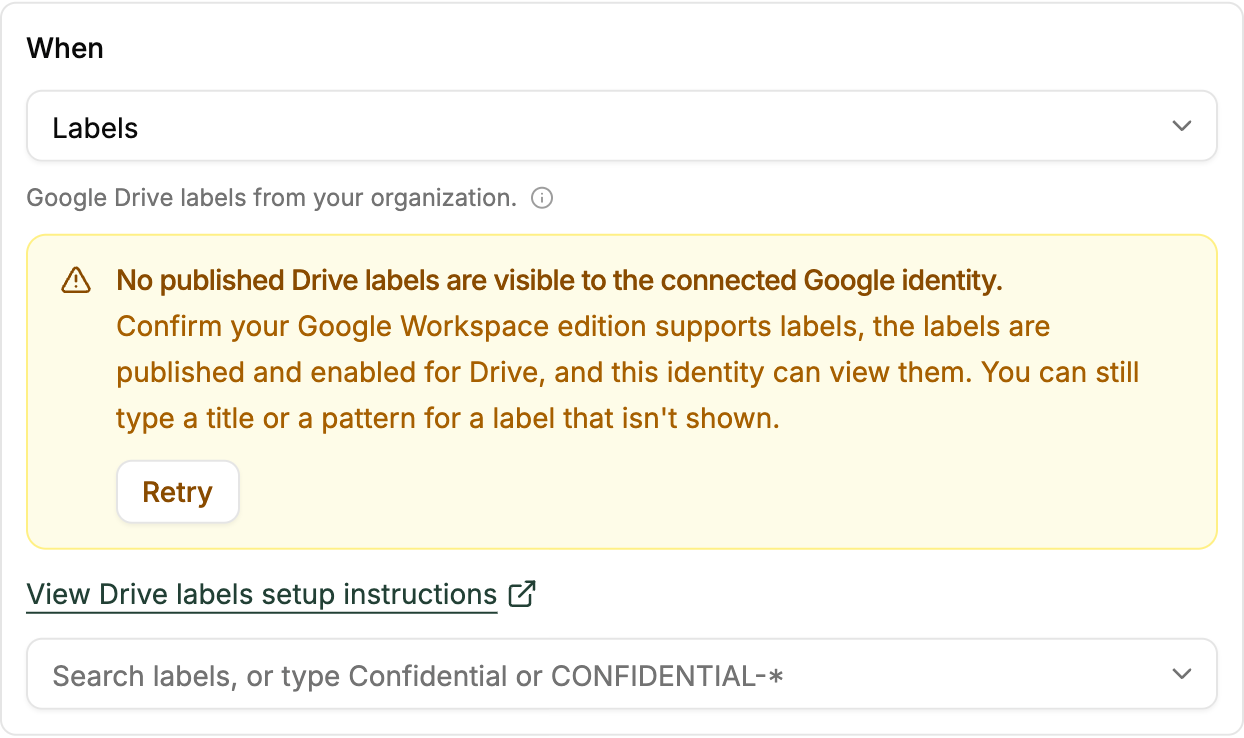

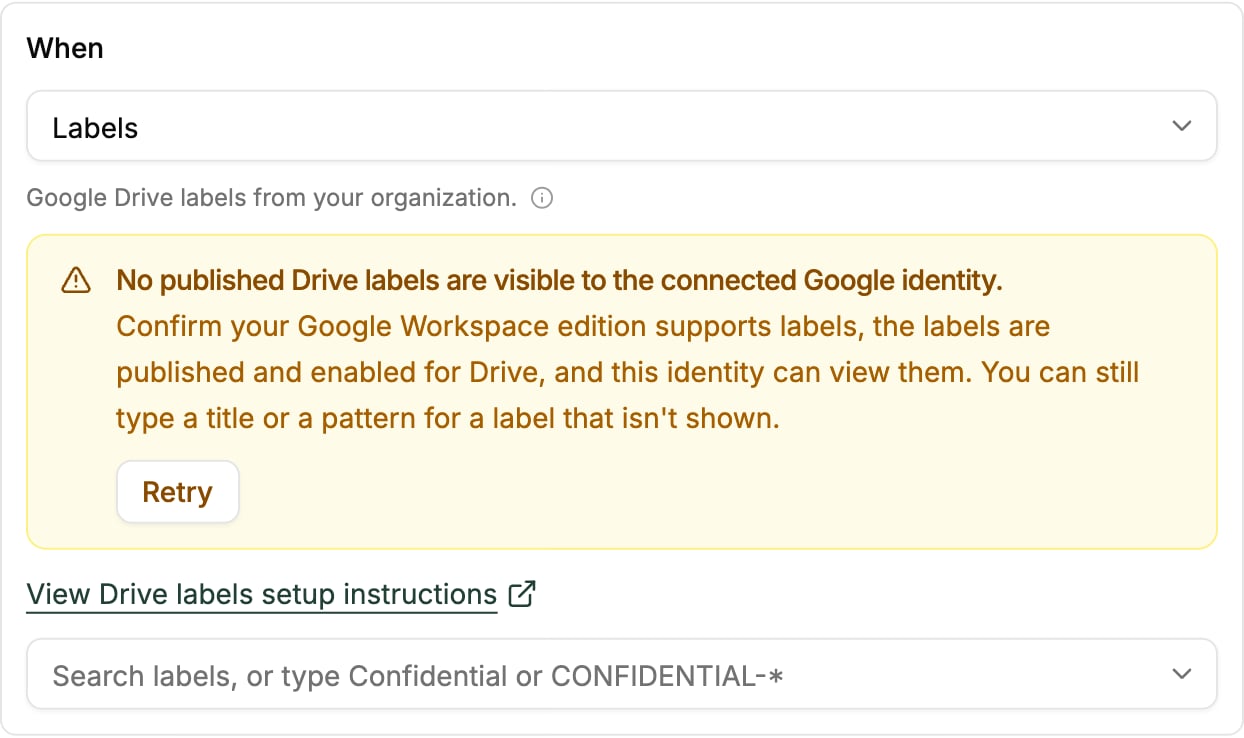

When section reporting that no published Drive labels are visible to the connected Google identity, with a Retry buttonConfirm that the labels are published, enabled for Drive, and visible to the Google Workspace user connected through Barndoor’s organization-level service account connection. An empty list usually means the API and OAuth grant are working but that user cannot see any eligible labels. You can still type a label title or a pattern for a label that isn’t listed.
The default drive.file scope can write only files this OAuth app created or that the user opened with it. Adding drive.labels does not change that. Add the drive scope on a private OAuth client and reconnect. See Enable write tools on existing files. Otherwise, apply the label in the Drive UI, or have the agent edit a copy made with copy_file.

​
Limitations

  • Barndoor discovers existing labels but does not create or publish the label taxonomy. There is no create_label tool on the Google Drive connector.
  • Reading labels on an existing file works with the default scopes. Applying labels or running other write tools on files Barndoor did not create needs the drive scope on your own OAuth client.
  • Stored public OAuth is enough for label discovery. A private client is optional unless you need write tools on existing files.
