A model route is a client-facing model name — the value callers put in model — backed by one or more targets. Each target is one provider model. Targets are tried top to bottom: the gateway sends the request to the first target, and if that target fails in a way another target might not, it sends the same request to the next one. This page explains exactly when that happens and how the gateway keeps traffic away from targets that keep failing. For the most common use of it — running Claude Code on each developer’s own Claude subscription, with a fallback model for when they hit their rate limit — see Get the most out of your Claude subscription.
You need a Barndoor account with admin privileges and the LLM Gateway enabled for your organization. New to gateway administration? Work through the Quickstart Guide first — this page assumes you know your way around LLM Management.

​
Routes and targets

Routes live under LLM Management → Model Routes.
  • Create Route asks for a Route Name (the name users put in API calls) and one or more provider models to add as targets.
  • Expand a route to see its targets, numbered in priority order. Drag a target by its handle to change the order. Add Targets adds more; the row’s actions menu has Rename route, Duplicate route, and Delete route.
  • Each target has its own controls on the right of its row:

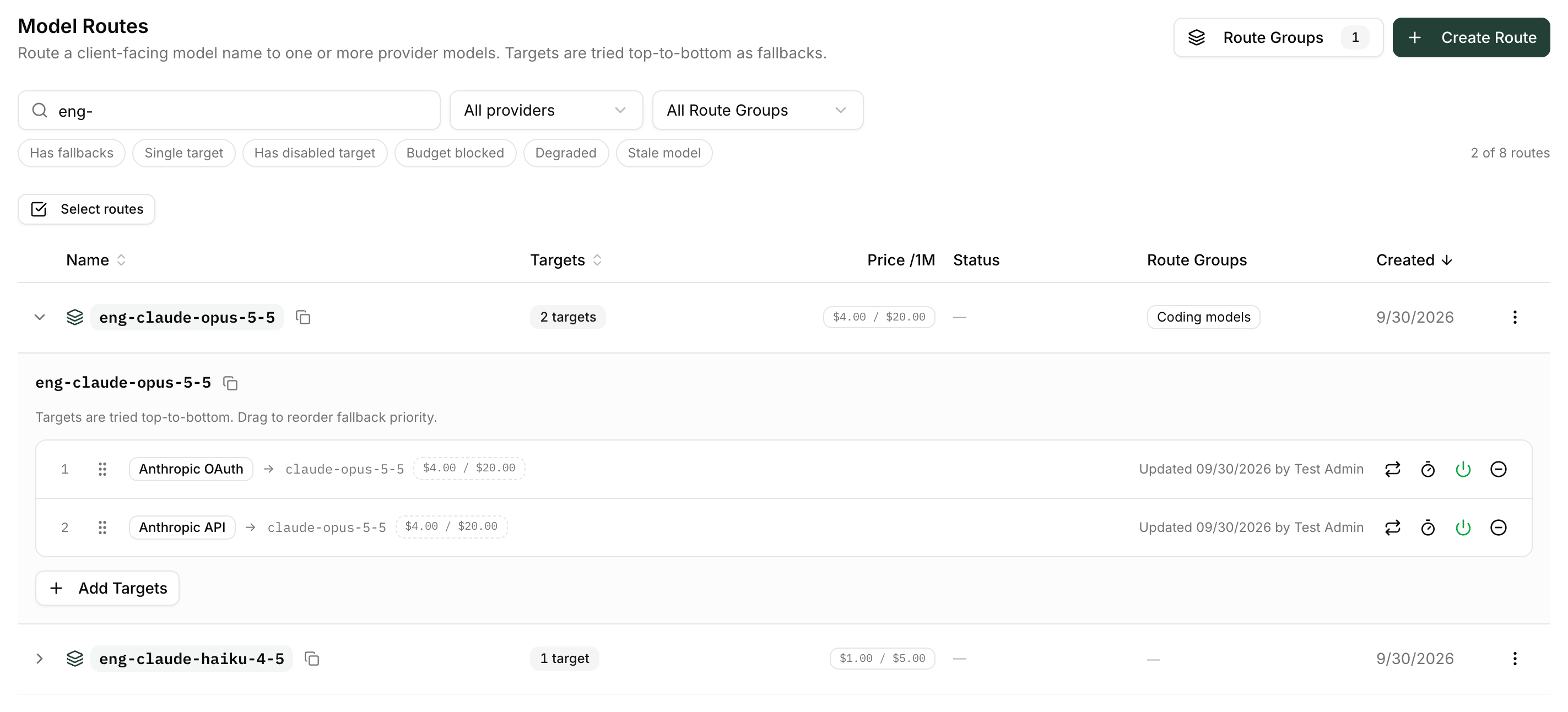

Model Routes filtered to eng- routes, with eng-claude-opus-5-5 expanded: Anthropic OAuth as target 1 and Anthropic API as target 2, both serving claude-opus-5-5
A target that can’t serve shows a badge explaining why — for example Provider disabled, Provider model disabled, Provider not serving (the provider is failing its connection health check), a budget-exhausted badge, or a cooldown badge (see Route health). Disabled or blocked targets are skipped; the rest of the route keeps serving.

​
When the gateway fails over

The gateway moves on to the next target when the current one fails with an error another provider might not share: Failover happens before the response starts. Once a target has begun streaming a response back, a later failure in that stream is not replayed on another target. When every target fails, the caller gets one error that lists each attempt under error.metadata.attempts. Its status is:
  • 401 if every target was skipped because the caller’s own credential was rejected;
  • 429, with Retry-After, if every target was rate-limited, out of quota, or cooling down;
  • the shared status if every attempt returned the same one;
  • otherwise 502.
Successful responses on POST /v1/chat/completions and POST /v1/messages carry x-bd-provider-route-attempt (which target served it, 1 = first), x-bd-provider-route-count, and x-bd-provider-failover-count. See Observability Headers.

​
Rate-limit retries

By default a rate-limited target fails over immediately. The Rate limit retries popover on each target changes that:
  • Retry count (0–10) — how many times to retry the same target on a rate limit before failing over. 0 means fail over immediately.
  • Max wait (s) (0–180) — when set, the gateway waits for the provider’s Retry-After between retries, up to this many seconds. At 0 it waits about one second between retries and ignores Retry-After.
The popover’s Effective behavior line spells out what the current values do. A target with custom retries shows a small retry-count badge.

​
Route health and cooldowns

On top of per-request failover, the gateway tracks the recent results of every target and puts one that keeps failing into a cooldown. While a target is cooling down, requests skip it and go straight to the next target, rather than paying for a failed attempt first. Health is tracked per provider and upstream model, not per route. Two routes that both use claude-opus-5-5 on the same provider share one health record, so a cooldown triggered through one route applies to both.

​
What starts a cooldown

Other 4xx responses, including 404, never start a cooldown — the provider answered, it just refused that request. When a cooldown expires, the target is recovering: the gateway lets a few requests through (three at a time) to test it. After three successes it is healthy again. If a test request fails, the target cools down again — for server failures, for twice as long as last time.

​
Passthrough providers cool down per user

On a provider using Claude OAuth passthrough or ChatGPT OAuth passthrough, each request carries the caller’s own subscription token. A 429 or usage-limit 400 there is that one person’s quota, and a 401/403 is that one person’s token. So those errors cool down only that caller’s credential; the target stays healthy for everyone else. A rejected token cools down for the longest window (300 seconds by default), because it won’t fix itself — the user needs to sign in again. Server errors, timeouts, and 529 overloaded responses still cool the target for everyone, since they aren’t about any one person’s credential.

​
Seeing it in the portal

In Model Routes, a target in cooldown shows a badge; hover it for the reason and when it recovers: A collapsed route shows N of M available when some of its targets are cooling down, or Temporarily unavailable when all of them are. Users see the same badges on their own models under Settings → My Models.

​
Custom cooldown policies

The thresholds above are per-target defaults. A target whose cooldown policy differs from the defaults shows a Custom cooldown badge; its tooltip lists every value, with the non-default ones in bold: Cooldown policies are changed through the admin API (the cooldown fields on Create a model route and Update a model route), not in the portal. The Terraform provider does not expose them yet. Because routes to the same upstream model share one health record, each route judges that shared record against its own policy.

​
Clearing a cooldown

Cooldowns clear on their own: once the window passes, the gateway sends recovery probes and returns the target to service when they succeed. There is no manual reset in the portal — if you need a target back in service sooner (for example, right after fixing a provider-side outage), contact Barndoor support.

​
Route groups

A Route Group is a named set of model routes that a model access policy can target as a whole — for example “Engineering” — instead of listing every route and editing the policy whenever a route is added.
  • Open Model Routes → Route Groups to create, rename, or delete groups and choose their routes.
  • Add routes to a group from a route’s actions menu, or select several routes and add them in bulk.
  • A route can belong to several groups. The Route Groups column and filter on the routes list show membership.
A group contains whole routes, not individual targets. Like every model access target, a group grants nothing on its own: it narrows an allowlist or blocks through a denylist. Deleting a route removes it from its groups automatically.
Renaming a route doesn’t always carry its group memberships over. If the route’s targets are also the models’ enablement on their providers — typically when the route name matches the upstream model name, such as claude-opus-5-5 → claude-opus-5-5 — the renamed route drops out of its groups, and any model access policy that targets those groups stops covering it. After renaming, check the Route Groups column and re-add the route if it’s missing. Budgets and rate limits whose Target is the old route name also keep the old name, so update them too.
